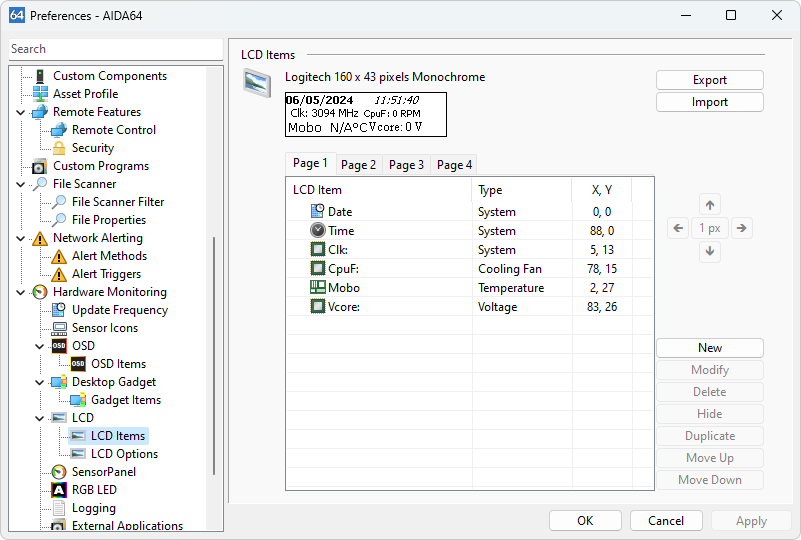

On this page, you can select the sensor items you want to display on the LCD and customize their layout. You can add new items to the list and modify, hide, copy, or delete existing ones.
Adding and Modifying Items
To add a new item, press the "New Item" button. To modify an existing item, select it from the list and press the "Modify" button. This will open the configuration window.
Moving and Positioning Items
Using the arrows on the right, you can move and position items on the LCD display one pixel at a time. A preview of the LCD screen is shown in the upper left corner of the window. When you press the “Apply” button, the items will instantly appear on the LCD display.
Multiple Pages
AIDA64 can display up to four pages of sensor items on the LCD. Individual pages are accessible by clicking on the page tabs at the top of the sensor item list.
Customization Options
Text Size
- Select the font size for the LCD item label and value text. Most fonts do not display well at sizes 6 and 7, so a minimum size of 8 pixels is recommended for proper readability.
Font Name
- Choose the font for the LCD item label and value text.
Style
- Select the font color by pressing the colored box. Note that text color can only be configured for keyboards with a color LCD display (e.g., Logitech G19 Gaming Keyboard).
- Configure font style to be bold or italic.
- Add a shadow effect if desired.
Label Customization
- Modify the default item label and customize its layout (color, font style, shadow).
Right-Align
- Align the LCD item to the right by enabling this option. If disabled, the item will be aligned to the left.
Show Label
- Enable this option to display the label next to the LCD item value.
Label
- Configure the label to be displayed next to the LCD item value.
Show Unit
- Enable this option to display the measurement unit (e.g., Celsius, RPM, Volt) next to the LCD item value. It is recommended to disable this option to save LCD space.
Unit
- Configure the measurement unit to be displayed next to the LCD item value.
