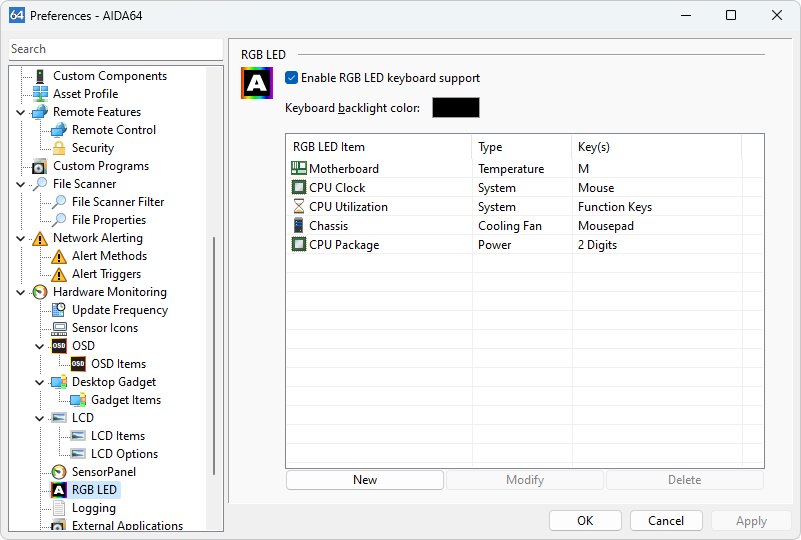

This page allows you to configure the Hardware Monitor RGB LED feature, which includes setting up the backlight color for 2 or 3 digit displays, keyboards, mice, and mousepads. The value type can be a system sensor, temperature, cooling fan speed, voltage value, or power value.


Adding and Modifying Items

Key

Configure the key where the RGB LED effect will be displayed. Only applicable when the "Single Key" item type is selected.

Row

Configure the row of keys where the RGB LED effect will be displayed. Only applicable when the "Row of Keys" item type is selected.

Divisor

Set the divisor to be applied to the sensor reading to make it fit into 2 or 3 digits. For example, cooling fan speeds are typically divided by 100 to make the fan speed RPM readings fit into 2 digits. Only applicable when the "2 Digits" or "3 Digits" item type is selected.

Min, Limit 1, Limit 2, Limit 3, Max

Configure the minimum, intermediate, and maximum limits for the RGB LED item. You can specify the minimum, maximum, and in-between limits for every item type. Click the colored box next to the value to pick the color for each limit.
